OD Face Seal are 100% compatible with Cameron Type FLS and FLS-R Gate Valves, It is spring-loaded and pressure-energized to improve gate and seat service life.
Brand:
JST SealsItem NO.:
ESCPayment:
T/TProduct Origin:
ChinaShipping Port:
GuangzhouOrder(MOQ):
50PEEK OFS OD face seal
OD Face Seal are 100% compatible with Cameron Type FLS and FLS-R Gate Valves. It consists of PEEK jacket with corrosion-resistant metal spring energizer. It is spring-loaded and pressure-energized to improve gate and seat service life. Compared with PTFE seals, it has higher strength and can handle higher temperature.

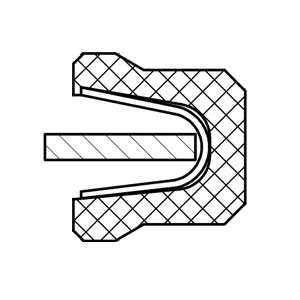

The V-spring is used as a force application element. The sealing jacket is made of peek which has good anti leakage and anti extrusion properties. As a valve seat sealing ring, it is widely used in high-pressure valves. Usually, the ID and OD face seal of the valve seat are used together.
 |
Advantages:
1. Over 15 different ID face seal options |
|
Working Conditions |
||||
|
Working Pressure |
Working Temperature |
Working Medium |
Material |
|
|
5000~15000PSI |
PU, LU, PX, LX |
Hydraulic fluids, crude oil, sour oil/gase, H2S, salty water |
PEEK, Elgiloy/SS steel, Filled PTFE | |
Application Suggestion:
FLS valve, FLS-R valve
Size:
2-1/16"
2-9/16"
3-1/16"
4-1/16"
5-1/8"
7-1/16"
|
||||||
| Valve Nominal Diameter | Pressure Level | Seat inner ring | ||||
| Inch | MM | psi | Mpa | Groove OD | Groove ID | Groove depth |
| 1-13/16" | 46 | 10K/15K | 70/105 | 70.69mm (2.783in) | 78.31mm (3.083in) | 3.10mm (0.122in) |
| 2-1/16" | 52 | 2K/3K/5K/10K | 14/21/35/70 | |||
| 2-1/16" | 52 | 15k | 105 | 86.13mm (3.390in) | 95.25mm (3.750in) | |
| 2-9/16" | 65 | 3K/5k | 21/35 | 111.81mm (4.402in) | 120.40mm (4.740in) | |
| 2-9/16" | 65 | 10k | 70 | 92.61mm (3.646in) | 101.70mm (4.004in) | |
| 2-9/16" | 65 | 15k/20K | 105/140 | 102.11mm (4.020in) | 109.98mm (4.330in) | |
| 3-1/16" | 78 | 10k/15K/20K | 70/105/140 | 111.81mm (4.402in) | 120.40mm (4.740in) | |
| 3-1/8" | 80 | 2K/3K/5K | 14/21/35 | 102.11mm (4.020in) | 109.98mm (4.330in) | |
| 4-1/16" | 103 | 3K/5K | 21/35 | 124.89mm (4.917in) | 133.40mm (5.252in) | |
| 4-1/16" | 103 | 10k | 70 | 130.99mm (5.157in) | 139.40mm (5.488in) | |
| 4-1/16" | 103 | 15K | 105 | 136.52mm (5.375in) | 146.05mm (5.750in) | |
| 5-1/8" | 130 | 5k | 35 | 158.80mm (6.252in) | 168.30mm (6.626in) | |
| 6-3/8" | 162 | 3k/5K | 21/35 | 196.85mm (7.750in) | 211.12mm (8.312in) | |
| 7-1/16" | 180 | 3k/5K | 21/35 | 196.85mm (7.750in) | 211.12mm (8.312in) | |
| 7-1/16" | 180 | 5K/10K | 35/70 | 215.90mm (8.500in) | 231.24mm (9.104in) | 4.70mm (0.185in) |
