P seal is constructed from an elastomer with back up rings for anti-extrusion. Energized by the injection of sealant, it is a static seal that is used to seal rough casing and tubing. Backup rings are available in Mesh Stainless Steel or Solid Carbon Steel.

The standard P Seal is a one-piece molded seal utilizing molded-in anti-extrusion device. This design enhances assembly by eliminating the loose anti-extrusion devices used in other designs.

P seal is installed in the lower sealing area of casing spool or tubing head. It is used to provide redundant well safety between casing annulus and flange connection of casing head, casing spool or tubing head. In some cases, it can also provide special sealing capacity for fracturing equipment.

Wellhead P seal specification: 5.5”

Working temperature: -29~121°C

Sealing properties: tubing hanger seal

Product composition: 1 pcs of rubber ring and 2 pcs of stainless steel wire mesh back up ring

Performance level: Passed 15000PSI test

1，Product and Groove

2，Installation steps：

2,1 Firstly, Cleaning and removing dust and impurities from the inside of the trench;

Do not use tools with sharp edges;

Apply lubricant or grease to the casing head, casing and seal before assembly.

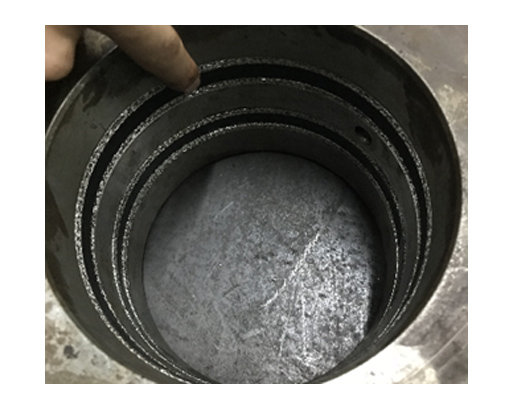

2,2 The seal is coated with a sealing grease for installation; as attached picture, the rubber is installed first, then put the two SS rings into the right position.

2.3 Finish.

3，Check the installation of the product to ensure that there are no abnormalities in the bumps.

4，Make sure the casing wellhead is chamfered.
