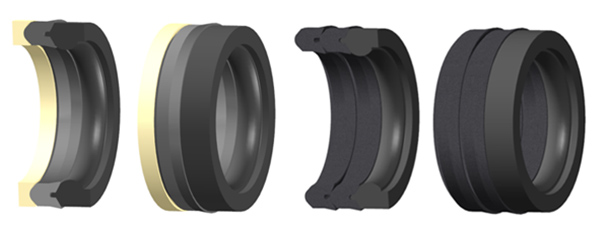

EVZ is commonly used in high-pressure mud pumps and fracturing pumps, namely Packings, the high-speed reciprocating dynamic seals. Its main function is to prevent plungers from leakage in high-speed reciprocating. Some special working conditions are taken into consideration when designing its structure and material, which make it apply to fracturing fluid, mud so on mediums.

Technical Requirements

Working Pressure: ≤20000Psi;

Working Temperature: -46℃~+165℃;

Material:HNBR/Fabric/PEEK/Modified PTFE

Fracturing pump seals are mainly applied in fracturing trucks, mud pumps and cementing trucks for Oil Industry of harsh working conditions. The working medium normally contains mud, oil, sand and acid chemical such as H2S. The maximum working pressure could be above 100Mpa, and working time lasts for more than 50 hours.

The concerned materials developed by JST have been tested and verified by the markets, which could satisfy the above mentioned working conditions.

Various dimensions and customization are available.

HNBR material testing report by China University of Petroleum for good performance.

The 4” fracturing pump seals provided by JST are installed in 2800 Type fracturing trucks working in Chuanqing Oilfield. The seals working conditions are as below:

Working pressure: 78Mpa

Total oil layer: 35

Total working time: 101 hours.

These seals are widely used in Chinese oilfields including Shengli Oilfield, Chuanqing Oilfield, Zhongyuan Oilfield, Xinjiang Oilfield, as well as used in Middle East and Russia.

Features: be resistant to high pressure, acid and alkali and fracuturing mud;easy installation, simple groove, good stability; apply to triplex pumps or quintuple pumps in nearly all current oil fields. Besides, we make targeted adjustments for our materials, which extend seals service lifetime effectively.

Remark: Different materials are chosen for different working conditions. If you have special requirment for pressure, temperature,speed or medium so on parameters, please contact us.
