In oil and gas wellhead systems, sealing integrity is critical for safe and efficient production. Among the key sealing components, the wellhead pack-off seal plays an essential role in isolating pressure zones and ensuring reliable well control.

1. What is a Wellhead Pack-Off Seal?

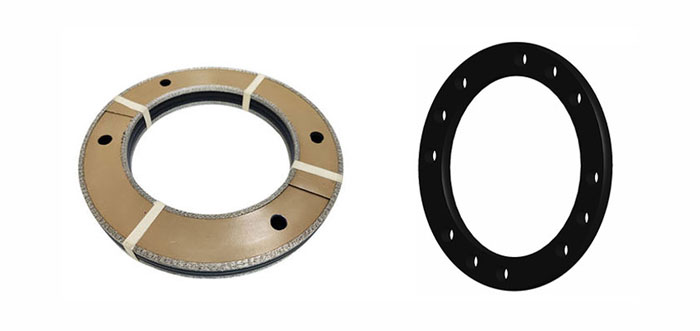

A wellhead pack-off seal is a sealing element installed in wellhead equipment to create a pressure-tight barrier between tubular components such as casing, tubing, or hangers.

Its primary function is to:

· Prevent fluid and gas leakage between annular spaces

· Maintain pressure containment in high-pressure wells

· Ensure safe wellhead operation during production, injection, or intervention

In simple terms, it “packs off” the annular gap and ensures the well remains sealed under dynamic downhole conditions.

2. Working Principle

The pack-off seal is typically energized either mechanically or hydraulically.

When installed:

· The seal is compressed between metal components

· Elastic deformation of elastomer or polymer materials creates radial sealing force

· In some designs, system pressure further energizes the seal (pressure-assisted sealing)

This dual sealing mechanism allows it to maintain integrity under:

· High pressure

· Temperature cycling

· Vibration and minor movement

3. Design Considerations

A reliable pack-off seal design must consider multiple engineering factors:

(1) Pressure Rating

Wellhead pack-off seals often operate in:

· Medium pressure: 3,000–10,000 psi

· High pressure: 15,000–20,000+ psi applications

(2) Temperature Range

Depending on well conditions:

· Low temperature (arctic environments)

· High temperature (>150°C / 300°F in deep wells)

(3) Extrusion Resistance

High pressure can cause elastomer extrusion into clearance gaps. Backup rings made of:

· PEEK

· PTFE

· Filled polymer composites are commonly used to prevent failure.

The wellhead pack-off seal is a small but mission-critical component in wellhead systems. Its performance directly impacts safety, environmental protection, and production reliability.
