Ball valves used in oil and gas pipelines operate under demanding conditions. They may be exposed to high pressure, temperature changes, aggressive media, and repeated opening and closing cycles. In these applications, the sealing system plays an important role in maintaining valve performance and preventing unwanted leakage.

But what makes a ball valve seal suitable for API 6D applications?

The answer is not simply the material or pressure rating of the seal. Seal geometry, material compatibility, extrusion resistance, surface conditions, temperature, and the overall valve design all need to work together. For pipeline and oil and gas applications, the sealing solution should be selected according to the actual service conditions of the valve.

What Is an API 6D Ball Valve?

API 6D is a commonly referenced standard for pipeline and piping valves used in the petroleum and natural gas industry. Ball valves designed for these applications are typically required to provide reliable shutoff and sealing performance under defined operating conditions.

A ball valve uses a spherical closure element that rotates to control fluid flow. When the valve is closed, the sealing elements around the ball help isolate the upstream and downstream sides of the valve.

Because the sealing interface is directly related to valve shutoff performance, the API 6D ball valve seal needs to maintain its sealing function under the pressure, temperature, and media conditions specified for the application.

Why Is Seal Selection Important for API 6D Ball Valves?

A valve can have a robust metal body and carefully machined components, but an unsuitable sealing element can still become a weak point in the system.

For example, a seal material may have good chemical resistance but insufficient wear resistance for repeated valve operation. Another material may provide good flexibility but become less stable at elevated temperatures. Excessive sealing force can also increase friction and operating torque.

This means that selecting an API 6D ball valve seal requires consideration of the complete operating environment rather than one performance parameter.

Important factors include:

· Operating pressure

· Operating and ambient temperature

· Valve size and sealing dimensions

· Valve operating frequency

· Fluid or gas composition

· Pressure cycling

· Surface finish of mating components

· Clearance and extrusion gap

· Required sealing performance and service life

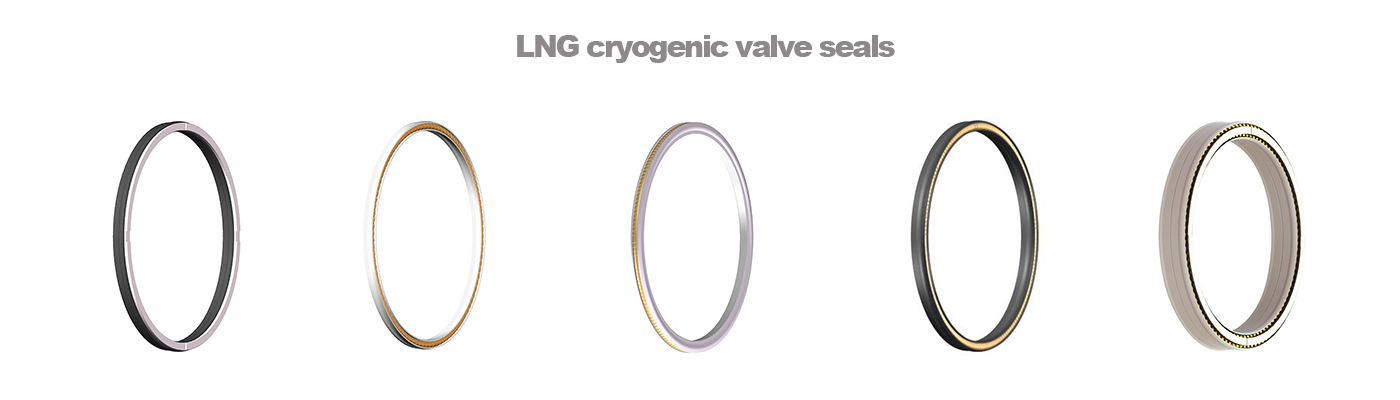

What Materials Are Used for API 6D Ball Valve Seals?

There is no single sealing material suitable for every API 6D ball valve application.

Elastomeric materials can be considered when flexibility and sealing recovery are important. Depending on the medium and temperature, different rubber compounds may be selected to provide the required resistance to chemical exposure and aging.

PTFE and modified PTFE compounds are also used in valve sealing applications where low friction, chemical resistance, and dimensional stability are important. Different fillers and formulations can be used to adjust wear resistance and mechanical properties.

For demanding oil and gas applications, material selection should be based on the actual medium and operating conditions. Temperature, pressure, fluid composition, and valve movement should all be evaluated before selecting the material.

How Does Pressure Affect Ball Valve Seals?

Pressure is one of the most important factors when designing a sealing system for a ball valve.

As pressure increases, the sealing element may experience greater deformation and a higher risk of extrusion into the clearance between mating components. Repeated pressure cycling can further increase stress on the seal.

A properly designed high pressure ball valve seal needs to maintain sufficient contact with the sealing surface while controlling deformation and extrusion.

Seal geometry is therefore important. The profile, sealing lip, contact area, supporting structure, and installation dimensions can all influence how the seal responds to pressure.

In some designs, pressure can also contribute to the sealing force. However, the relationship between pressure and sealing performance needs to be considered together with friction, material properties, and dimensional tolerances.

How Does Temperature Affect Ball Valve Seal Performance?

Pipeline valves may encounter significant temperature changes during transportation, processing, shutdown, and startup.

Temperature affects the physical properties of sealing materials. Elastomers can become harder or softer depending on temperature, while polymer-based materials may experience changes in dimensional stability and mechanical behavior.

At low temperatures, maintaining adequate sealing contact can become more challenging. At elevated temperatures, thermal aging and material degradation may become more important.

For this reason, a suitable ball valve seal should be selected according to the actual temperature range rather than a general material temperature limit.

The combination of pressure and temperature is particularly important. A material that performs well under moderate pressure at room temperature may behave differently under high pressure and elevated temperature.

What Causes Leakage in API 6D Ball Valves?

Seal leakage can have several causes, and replacing the seal material is not always enough to solve the problem.

Seal material incompatibility

Exposure to an unsuitable medium can cause swelling, hardening, softening, or chemical degradation.

Extrusion

High pressure combined with an excessive clearance gap can cause the sealing material to deform into the gap, potentially damaging the seal.

Surface damage

Scratches, dents, or unsuitable surface finish on the mating component can interfere with sealing contact.

Excessive wear

Repeated valve operation can gradually wear the sealing interface, especially when friction is high or lubrication conditions are unsuitable.

Improper installation

Twisting, cutting, contamination, or incorrect positioning during assembly can affect sealing performance.

Incorrect seal geometry

Even when the material is suitable, an unsuitable profile may produce excessive friction or insufficient sealing contact.

Understanding the actual failure mechanism is often more useful than simply replacing a failed ball valve seal with the same design.

How Should You Select a Ball Valve Seal for Oil and Gas Applications?

The selection process should begin with the valve's operating conditions.

First, identify the medium being handled. Oil, natural gas, chemicals, and other process fluids can have very different compatibility requirements.

Next, determine the pressure and temperature range, including pressure spikes and temperature cycling where applicable.

The sealing location is also important. A seal used in a static sealing position may require a different design approach from one exposed to rotary movement.

The valve's dimensions and tolerances should then be considered. Seal cross-section, groove dimensions, clearance, and mating surface conditions all affect the final sealing performance.

For applications with demanding requirements, engineers may also need to evaluate:

· Friction and operating torque

· Extrusion resistance

· Compression and recovery

· Wear resistance

· Chemical compatibility

· Thermal stability

· Pressure cycling

· Expected service life

This application-based approach helps avoid selecting a seal based only on nominal size or material name.

Can Ball Valve Seals Be Customized?

Standard sealing profiles can be suitable for many valve applications, but some operating conditions require a more specific solution.

Customization may involve the sealing profile, dimensions, material formulation, or a combination of these factors.

For example, a valve manufacturer may have a specific groove design or dimensional tolerance that does not correspond directly to a standard seal. In other cases, the operating medium, pressure, temperature, or friction requirements may call for a different material formulation.

For these applications, a customized API 6D ball valve seal can be developed based on the valve structure and operating conditions.

The objective is not simply to make the seal harder or increase the sealing force. The design should balance sealing performance, movement, extrusion resistance, material compatibility, and service life.

Ball Valve Sealing for Oil and Gas Applications

In oil and gas pipeline systems, sealing performance is closely connected to the overall reliability of the valve.

A suitable sealing solution should take into account more than pressure alone. Material compatibility, temperature, valve movement, surface condition, dimensional tolerances, and extrusion resistance can all affect how the seal performs in service.

JST Seals develops custom sealing solutions for industrial valve applications, with capabilities covering material formulation, mold development, precision manufacturing, and testing. For demanding API 6D ball valve seal applications, seal selection can be evaluated according to the actual valve design and operating conditions.

This application-focused approach helps valve manufacturers and equipment users identify a sealing design that is appropriate for the intended service environment.

Frequently Asked Questions

What is an API 6D ball valve seal?

An API 6D ball valve seal is a sealing component used in ball valves designed for pipeline and related petroleum and natural gas applications. Its design and material need to be compatible with the valve's specified operating conditions.

What materials are commonly used for ball valve seals?

Depending on the application, elastomers, PTFE, modified PTFE, and other engineered sealing compounds may be used. The appropriate material depends on pressure, temperature, medium, movement, and other operating conditions.

Can a ball valve seal withstand high pressure?

The pressure capability depends on the complete sealing design, including material, profile, clearance, supporting components, temperature, and valve construction. A seal should therefore be evaluated under the actual operating conditions rather than by material alone.

Why does an API 6D ball valve leak?

Possible causes include seal degradation, extrusion, surface damage, excessive wear, incorrect installation, unsuitable material selection, or an inappropriate seal profile.

How do I select a ball valve seal for oil and gas?

Start with the valve type, sealing location, medium, pressure, temperature, movement, dimensions, tolerances, and surface conditions. These parameters can then be used to determine the appropriate seal material and profile.

Can API 6D ball valve seals be customized?

Yes. Custom dimensions, profiles, and material formulations can be considered when standard sealing products do not match the valve design or operating requirements.
