In oil and gas wellhead systems, sealing reliability is essential for maintaining well integrity and preventing pressure loss. Among the various sealing solutions used in API 6A wellhead equipment, the FS Seal is specifically designed to compensate for rough sealing surfaces and larger dimensional tolerances commonly found in casing and tubing connections.

If you're selecting seals for a casing head, tubing head, or casing spool, understanding how an FS seal works can help improve sealing reliability and reduce maintenance in demanding oilfield environments.

What Is an FS Seal?

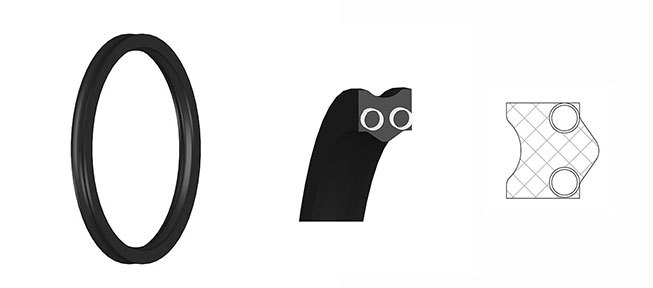

An FS Seal (Flexible Spring Seal) is a static sealing element used in oil and gas wellhead equipment. It is installed between the wellhead housing and the casing or tubing to create a reliable pressure barrier, even when sealing surfaces have relatively rough finishes or larger machining tolerances.

Unlike conventional elastomer seals that rely mainly on compression, an FS seal incorporates an internal spring energizer that continuously applies sealing force. This allows the seal to maintain contact with the sealing surfaces despite dimensional variations or thermal expansion during operation.

Because of this design, FS seals are widely used in API 6A casing heads, tubing heads, and casing spools where sealing reliability is critical.

Where Is an FS Seal Installed?

An FS seal is typically installed in the secondary sealing area of wellhead equipment.

Common installation locations include:

• Casing heads
• Casing spools
• Tubing heads
• Wellhead housing assemblies

Its primary function is to seal the annular space between the casing or tubing and the wellhead body, helping maintain pressure containment throughout the production life of the well.

Unlike dynamic seals, FS seals operate under static conditions, where long-term pressure retention is more important than accommodating reciprocating motion.

How Does an FS Seal Work?

The sealing performance of an FS seal comes from the combination of an elastomer sealing element and an embedded spring.

When installed, the spring applies continuous radial sealing force, allowing the seal to conform to minor surface irregularities and compensate for manufacturing tolerances. As system pressure increases, the pressure further energizes the sealing element, enhancing sealing effectiveness.

This dual sealing mechanism provides several important advantages:

• Continuous sealing force, even before system pressure is applied
• Better compensation for rough surface finishes
• Reliable sealing across wider dimensional tolerances
• Stable performance during pressure and temperature fluctuations

These characteristics make FS seals particularly suitable for wellhead applications where machining tolerances cannot always be minimized.

Why Are FS Seals Used in Wellhead Equipment?

Wellhead equipment operates under demanding conditions, including high pressure, temperature fluctuations, and long service intervals. Standard sealing solutions may struggle to maintain reliable sealing when mating surfaces are rough or component tolerances vary.

FS seals are designed to address these challenges by providing:

Tolerance Compensation

One of the key advantages of an FS seal is its ability to accommodate larger dimensional and geometric tolerances without sacrificing sealing performance.

Reliable Static Sealing

Since wellhead connections remain stationary after assembly, FS seals are optimized for long-term static sealing under sustained pressure.

Improved Pressure Integrity

The spring-energized design helps maintain consistent sealing force, reducing the risk of leakage throughout the operating life of the well.

Adaptability to Surface Finish

Unlike some conventional seals that require highly polished sealing surfaces, FS seals can effectively seal against relatively rough casing and tubing surfaces.

FS Seal vs Conventional Elastomer Seals

Although both sealing solutions are used in wellhead systems, their performance characteristics differ.

For applications where component tolerances are wider or sealing surfaces are less uniform, FS seals generally provide more consistent sealing performance.

What Materials Are Used for FS Seals?

Material selection depends on the operating environment, including pressure, temperature, and well fluids.

Typical sealing materials include:

• HNBR
• FKM
• Specialty elastomers for oilfield service

The embedded spring or reinforcement is commonly manufactured from corrosion-resistant metallic materials to ensure long-term sealing performance.

Material selection should always consider:

• Operating pressure
• Temperature range
• Produced fluids
• Chemical compatibility
• Service life requirements
• Typical Applications of FS Seals

FS seals are primarily used in surface wellhead equipment for oil and gas production.

Typical applications include:

• API 6A casing heads
• Casing spools
• Tubing heads
• Surface wellhead assemblies
• High-pressure wellhead sealing systems

These applications require dependable long-term sealing to ensure safe operation and maintain well integrity throughout drilling, completion, and production.

How Do You Select the Right FS Seal?

Selecting the correct FS seal requires evaluating both equipment design and operating conditions.

Key considerations include:

• Wellhead equipment type
• Pressure rating
• Temperature range
• Casing and tubing dimensions
• Surface finish quality
• Dimensional tolerances
• Media compatibility
• API specification requirements

Working with an experienced wellhead seal manufacturer can help ensure the seal design and material match the specific operating conditions of your application.

Conclusion

An FS seal is a spring-energized static seal developed specifically for API 6A wellhead equipment. Its ability to compensate for rough surface finishes and wider dimensional tolerances makes it an effective sealing solution for casing heads, tubing heads, and casing spools operating under demanding oilfield conditions.

Compared with conventional elastomer seals, FS seals provide more consistent sealing force, improved tolerance compensation, and enhanced long-term pressure integrity. By selecting the appropriate seal design and material, operators can improve wellhead reliability, reduce leakage risks, and extend equipment service life.

Frequently Asked Questions

What is an FS seal?

An FS seal is a spring-energized static seal used in API 6A wellhead equipment to seal between the wellhead housing and casing or tubing. It is designed to compensate for rough sealing surfaces and larger dimensional tolerances while maintaining reliable pressure containment.

Where is an FS seal installed?

FS seals are typically installed in casing heads, casing spools, tubing heads, and other wellhead components where long-term static sealing is required.

Why are FS seals used instead of conventional seals?

FS seals provide continuous spring loading and better tolerance compensation, making them more suitable for wellhead equipment with rough surface finishes, dimensional variations, and demanding pressure conditions.

Are FS seals suitable for high-pressure wellheads?

Yes. FS seals are specifically designed for high-pressure wellhead applications and are commonly used in API 6A equipment. Proper material selection and seal design should always be based on the actual operating pressure, temperature, and media conditions.
