S-Seal is designed for extreme oil and gas applications.
It is a technologically
advanced replacement for traditional three-piece T-Seals or O-Rings with
back-ups.
Brand:
JST SealsItem NO.:
ESSPayment:
T/TProduct Origin:
ChinaShipping Port:
GuangzhouOrder(MOQ):

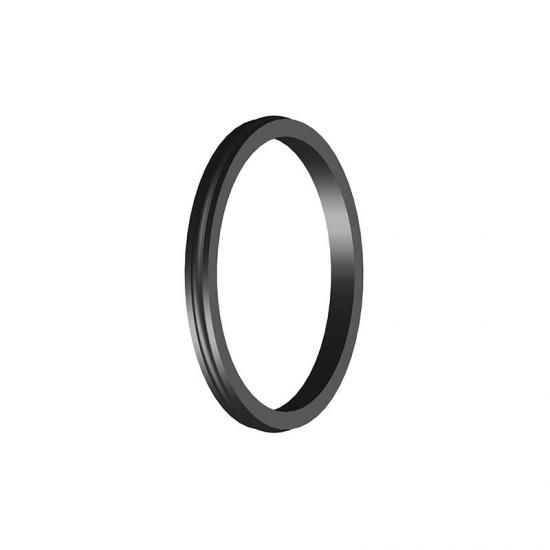

50API 6A casing head piston S seal
S-Seal is a technologically advanced replacement for traditional three-piece T-Seals or O-Rings with back-ups. It is a compact, single piece seal design featuring an extrusion resistant elastomer with two anti-extrusion springs molded into the outer edges.
The combined seal can provide leak free sealing performance under extreme pressure. S-seal is very suitable for many chemical processing, chemical transportation and oil and gas applications, such as effective sealing applications that meet the following conditions:
The one-piece S-Seal eliminates installation problems that can occur when using multiple component seals. It can be stretched into place without splitting or compromising the non-extrusion elements of the seal.
S-seal sealing materials need to withstand pressures as high as 15 000 psi and temperatures of 149º C (300º F).
JST S-seal is made to perform in toughest situations, delivering reliable high-pressure static sealing. JST S-Seal elastomers are qualified to API 6A FF/HH (10% sour gas) and meet additional certifications which may include ISO 23936-2, NORSOK M-710.
JST S-seal is available in material NBR, HNBR, FKM with 2 integral anti-extrusion springs. Spring seals can be manufactured in a variety of standard or non-standard sizes, allowing them to be retrofitted into existing O-ring grooves.
 |
Product Highlights： 1.Designed to withstand pressures to 20,000 psi and temperatures to 350°F. 2.Single-piece design means easier installation, equipment assembly and maintenance. 3.Engineered to fit existing AS568 style and ISO 3601-2 style grooves. 4.Available for static and dynamic applications in materials suitable for demanding downhole environments. 5. Material is certified with Norsok M710 H2S immersion test. 6. Rapid gas decompression resistance. |
|
Working Conditions |
|||
|
Temperature range |
Pressure |
Medium |
|
|
LU, PU, SX |
≤20000 PSI |
Oil,
water, Gas, H2S, CO2, etc |
|
Size:
3.5", 4.5", 5", 7"
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
