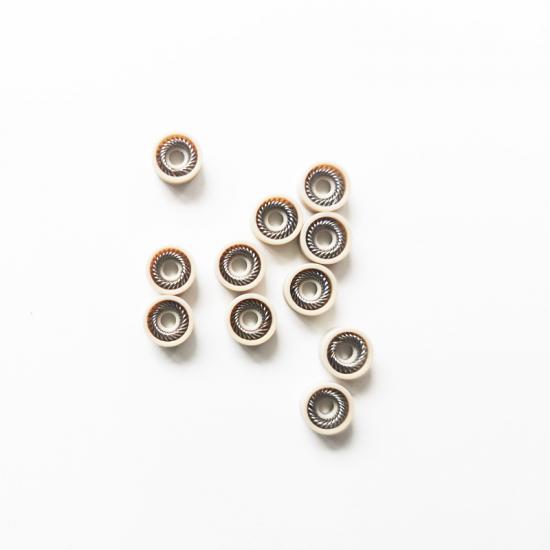

Spring energized seal for hot melt adhesive injection machine

Spring energized PTFE seals consist of variety of jacket profiles and spring types. It can achieve the sealing effect compensation under different pressure conditions by spring energizer.

The spring energized seal is widely used in medical equipment, which is generally composed of a corrosion resistant spring and a seal ring made of U-shaped filled PTFE/UPE material.

The ball valve seat is responsible for sealing the fluid inside and uniformly distributing the seating stress. A leak of ball valve in petrochemical application could be environmentally devastating.

The spring energized seal is widely used in medical equipment, which is generally composed of a corrosion resistant spring and a seal ring made of U-shaped filled PTFE/UPE material.

In LNG operations, valves can regularly encounter temperatures below -320 F (-196 C) and pressures above 750 pounds per square inch (psi). They are also subjected to periodic variations in temperatures known as “thermal cycling,” which can result in hardware expansion as well as shrinkage and material stresses. These factors make reliable, long-term valve operation an engineering challenge.

JST's back up ring compensate for large temperature fluctuations. Using Back-up Rings allows O-Rings to be utilized in higher pressure applications, where larger extrusion gaps are required and where there are reciprocating or rotating movements. Back-up Rings are protective and supporting elements with no sealing function. The back up ring material could be  PEEK, modified PTFE.

JST's centralizer rubber fins is made according to customer requirements. The centralizer fin has a retrievable, reseatable, flexible design. This Rubber and metal reinforced rubber centralizer fins are available for a variety of MWD (measurement while drilling) tools and oil well logging and monitoring instruments.

JST ESY series design is commonly used as dynamic seal for ball valve stem, and the ESY with various V rings and T shape support rings could be used for fugitive emission valves, meeting the requirements of ISO-15848.
